Azure Architecture Autopilot

Design → Diagram → Bicep → Deploy — all from natural language

Azure Architecture Autopilot designs Azure infrastructure from natural language,
generates interactive diagrams, produces modular Bicep templates, and deploys — all through conversation.
It also scans existing resources, visualizes them as architecture diagrams, and refines them on the fly.

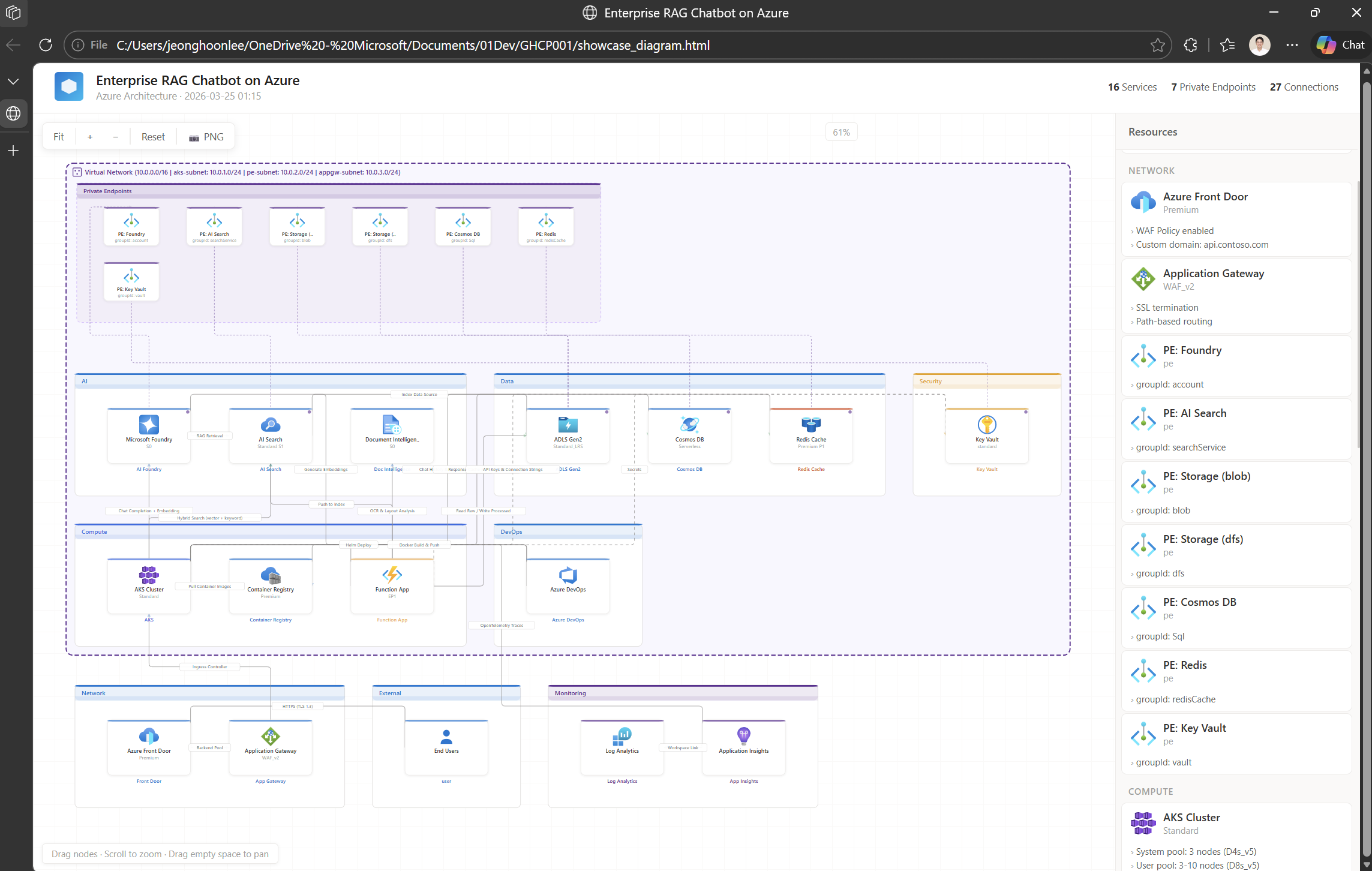

↑ Auto-generated interactive diagram — drag, zoom, click for details, export to PNG

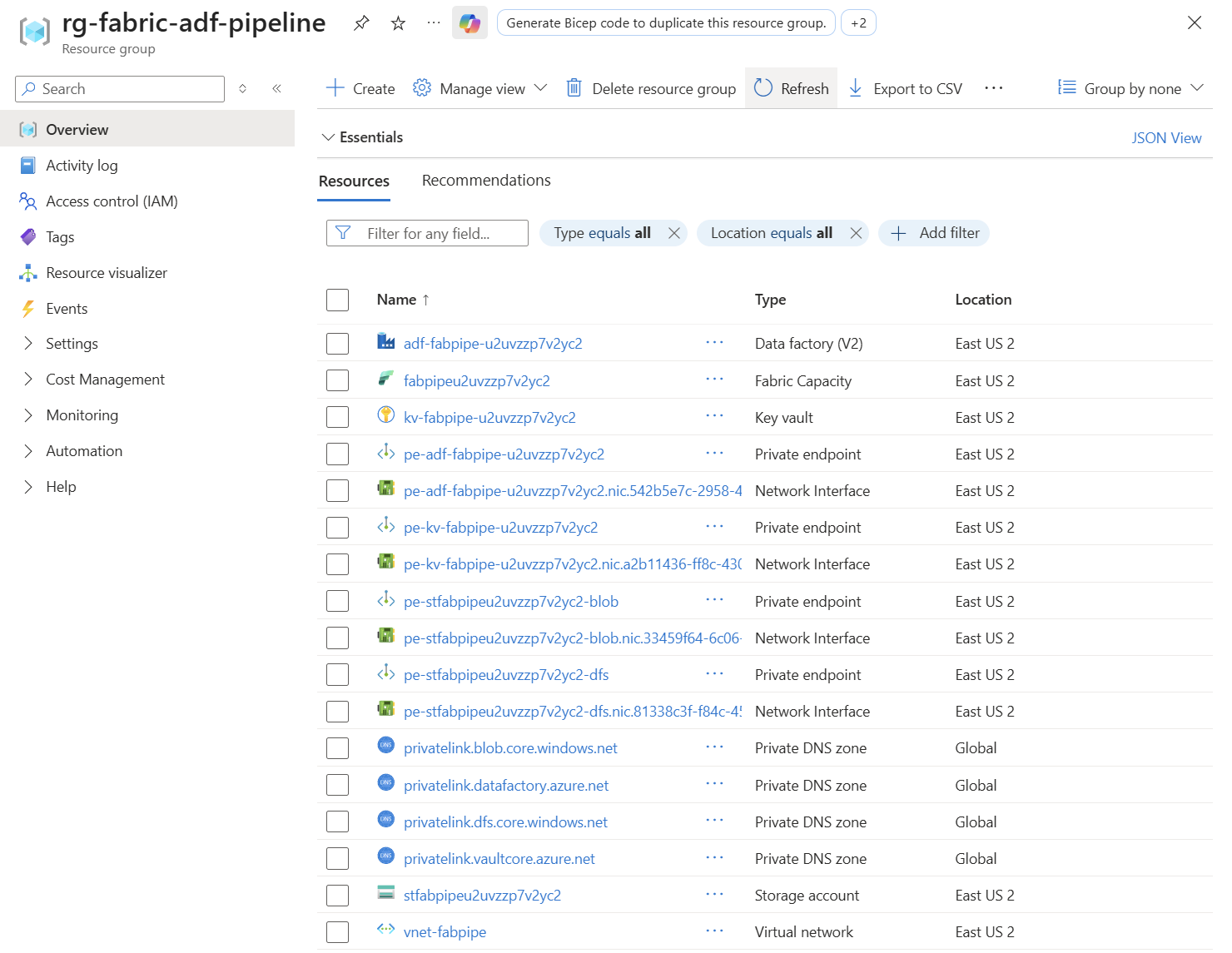

↑ Real Azure resources deployed from the generated Bicep templates

How It Works • Features • Prerequisites • Usage • Architecture

---

🔄 How It Works

Path A: "Build me a RAG chatbot on Azure"
         ↓
  🎨 Design → 🔧 Bicep → ✅ Review → 🚀 Deploy

Path B: "Analyze my current Azure resources"
         ↓
  🔍 Scan → 🎨 Modify → 🔧 Bicep → ✅ Review → 🚀 Deploy

Phase	Role	What Happens
0	🔍 Scanner	Scans existing Azure resources via az CLI → auto-generates architecture diagram
1	🎨 Advisor	Interactive design through conversation — asks targeted questions with smart defaults
2	🔧 Generator	Produces modular Bicep: main.bicep + modules/*.bicep + .bicepparam
3	✅ Reviewer	Compiles with az bicep build, checks security & best practices
4	🚀 Deployer	validate → what-if → preview diagram → create (5-step mandatory sequence)

---

✨ Features

	Feature	Description
📦	Zero Dependencies	605+ Azure icons bundled — no pip install, works offline
🎨	Interactive Diagrams	Drag-and-drop HTML with zoom, click details, PNG export
🔍	Resource Scanning	Analyze existing Azure infra → auto-generate architecture diagrams
💬	Natural Language	"It's slow", "reduce costs", "add security" → guided resolution
📊	Live Verification	API versions, SKUs, model availability fetched from MS Docs in real-time
🔒	Secure by Default	Private Endpoints, RBAC, managed identity — no secrets in files
⚡	Parallel Preload	Next-phase info loaded while waiting for user input
🌐	Multi-Language	Auto-detects user language — responds in English, Korean, or any language

---

⚙️ Prerequisites

Tool	Required	Install
GitHub Copilot CLI	✅	Install guide
Azure CLI	✅	winget install Microsoft.AzureCLI / brew install azure-cli
Python 3.10+	✅	winget install Python.Python.3.12 / brew install python

No additional packages required — the diagram engine is bundled in scripts/.

🤖 Recommended Models

	Models	Notes
🏆 Best	Claude Opus 4.5 / 4.6	Most reliable for all 5 phases
✅ Recommended	Claude Sonnet 4.5 / 4.6	Best cost-performance balance
⚠️ Minimum	Claude Sonnet 4, GPT-5.1+	May skip steps in complex architectures

---

🚀 Usage

Path A — Build new infrastructure

"Build a RAG chatbot with Foundry and AI Search"
"Create a data platform with Databricks and ADLS Gen2"
"Deploy Fabric + ADF pipeline with private endpoints"
"Set up a microservices architecture with AKS and Cosmos DB"

Path B — Analyze & modify existing resources

"Analyze my current Azure infrastructure"
"Scan rg-production and show me the architecture"
"What resources are in my subscription?"

Then modify through conversation:

"Add 3 VMs to this architecture"
"The Foundry endpoint is slow — what can I do?"
"Reduce costs — downgrade AI Search to Basic"
"Add private endpoints to all services"

📂 Output Structure

<project-name>/
├── 00_arch_current.html         ← Scanned architecture (Path B)
├── 01_arch_diagram_draft.html   ← Design diagram
├── 02_arch_diagram_preview.html ← What-if preview

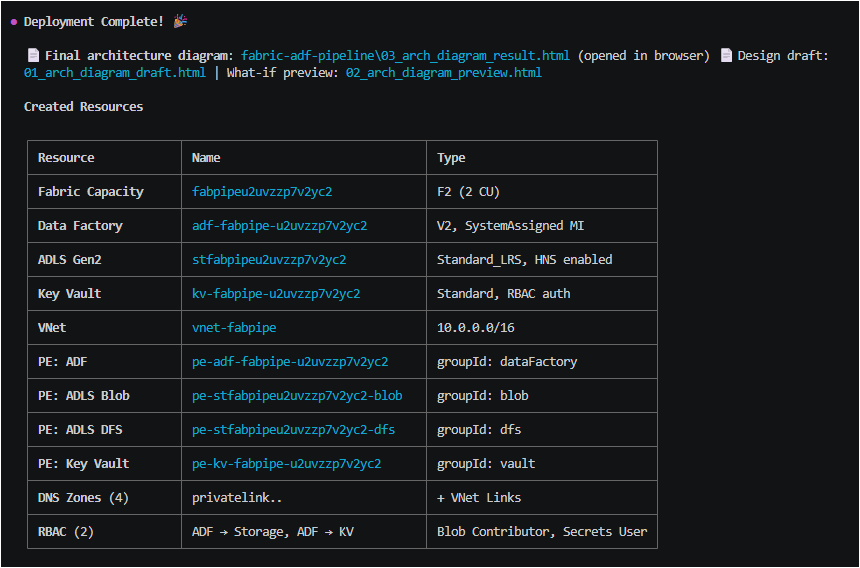

├── 03_arch_diagram_result.html  ← Deployment result
├── main.bicep                   ← Orchestration
├── main.bicepparam              ← Parameter values
└── modules/
    └── *.bicep                  ← Per-service modules

---

📁 Architecture

SKILL.md                            ← Lightweight router (~170 lines)
│
├── scripts/                         ← Embedded diagram engine
│   ├── generator.py                 ← Interactive HTML generator
│   ├── icons.py                     ← 605+ Azure icons (Base64 SVG)
│   └── cli.py                       ← CLI entry point
│
└── references/                      ← Phase instructions + patterns
    ├── phase0-scanner.md            ← 🔍 Resource scanning
    ├── phase1-advisor.md            ← 🎨 Architecture design
    ├── bicep-generator.md           ← 🔧 Bicep generation
    ├── bicep-reviewer.md            ← ✅ Code review
    ├── phase4-deployer.md           ← 🚀 Deployment pipeline
    ├── service-gotchas.md           ← Required properties & PE mappings
    ├── azure-common-patterns.md     ← Security & naming patterns
    ├── azure-dynamic-sources.md     ← MS Docs URL registry
    ├── architecture-guidance-sources.md
    └── ai-data.md                   ← AI/Data service domain pack

Self-contained — SKILL.md is a lightweight router. All phase logic lives in references/. The diagram engine is embedded in scripts/ with no external dependencies.

---

📊 Supported Services (70+ types)

All Azure services supported. AI/Data services have optimized templates; others are auto-looked up from MS Docs.

Key types: ai_foundry · openai · ai_search · storage · adls · keyvault · fabric · databricks · aks · vm · app_service · function_app · cosmos_db · sql_server · postgresql · mysql · synapse · adf · apim · service_bus · logic_apps · event_grid · event_hub · container_apps · app_insights · log_analytics · firewall · front_door · load_balancer · expressroute · sentinel · redis · iot_hub · digital_twins · signalr · acr · bastion · vpn_gateway · data_explorer · document_intelligence ...

---

📄 License

MIT © Jeonghoon Lee
