# ёRadio ##### Web-radio based on [ESP32-audioI2S](https://github.com/schreibfaul1/ESP32-audioI2S) or/and [ESP32-vs1053_ext](https://github.com/schreibfaul1/ESP32-vs1053_ext) library --- - [Hardware](#hardware) - [Connection tables](#connection-tables) - [Software dependencies](#dependencies) - [Hardware setup](#hardware-setup) - [Quick start](#quick-start) - [Update](#update) - [Controls](Controls.md) - [MQTT](#mqtt) - [Home Assistant](#home-assistant) - [More features](#more-features) - [Plugins](#plugins) - [Version history](#version-history) --- ##### More images in [Images.md](Images.md) --- ## Hardware #### Required: **ESP32 board**: https://aliexpress.com/item/32847027609.html \ **I2S DAC**, roughly like this one: https://aliexpress.com/item/1005001993192815.html \ https://aliexpress.com/item/1005002011542576.html \ or **VS1053b module** : https://aliexpress.com/item/32893187079.html \ https://aliexpress.com/item/32838958284.html \ https://aliexpress.com/item/32965676064.html #### Optional: ##### Displays - **ST7735** 1.8' or 1.44' https://aliexpress.com/item/1005002822797745.html - or **SSD1306** 0.96' 128x64 I2C https://aliexpress.com/item/1005001621806398.html - or **SSD1306** 0,91' 128x32 I2C https://aliexpress.com/item/32798439084.html - or **Nokia5110** 84x48 SPI https://aliexpress.com/item/1005001621837569.html - or **ST7789** 2.4' 320x240 SPI https://aliexpress.com/item/32960241206.html - or **SH1106** 1.3' 128x64 I2C https://aliexpress.com/item/32683094040.html - or **1602** 16x2 I2C https://aliexpress.com/item/32305776560.html - or **1602** 16x2 without I2C https://aliexpress.com/item/32305776560.html - or **SSD1327** 1.5' 128x128 I2C https://aliexpress.com/item/1005001414175498.html - or **ILI9341** 3.2'320x240 SPI https://aliexpress.com/item/33048191074.html - or **SSD1305 (SSD1309)** 2.4' 128x64 SPI https://aliexpress.com/item/32950307344.html - or **SH1107** 0.96' 128x64 I2C https://aliexpress.com/item/4000551696674.html - or **GC9106** 0.96' 160x80 SPI (looks like ST7735S, but it's not him) https://aliexpress.com/item/32947890530.html ##### Controls - Three tact buttons https://www.aliexpress.com/item/32907144687.html - Encoder https://www.aliexpress.com/item/32873198060.html - Joystick https://aliexpress.com/item/4000681560472.html \ https://aliexpress.com/item/4000699838567.html - IR Control https://www.aliexpress.com/item/32562721229.html \ https://www.aliexpress.com/item/33009687492.html - Touchscreen https://aliexpress.com/item/33048191074.html --- ## Connection tables | SPI Display | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | VCC | +5v | - | | SCL | 18 | - | | SDA | 23 | - | | CSL | 5* | TFT_CS | | RSTL | 15* | TFT_RST | | DCL | 4* | TFT_DC | | NOKIA5110 | ESP-32 | options.h | | ------ | ------ | ------ | | RST | 15* | TFT_RST | | CE | 5* | TFT_CS | | DC | 4* | TFT_DC | | DIN | 23 | - | | CLK | 18 | - | | VCC | +3v3 | - | | GND | GND | - | | I2C Display | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | VCC | +5v | - | | SDA | 13* | I2C_SDA | | SCL | 14* | I2C_SCL | | LCD 1602 | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | VCC | +5v | - | | RS | any* | LCD_RS | | E | any* | LCD_E | | D4 | any* | LCD_D4 | | D5 | any* | LCD_D5 | | D6 | any* | LCD_D6 | | D7 | any* | LCD_D7 | | Touchscreen | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | VCC | +3.3v | - | | CLK | 18 | - | | DIN | 23 | - | | DO | 19 | - | | IRQ | N/C | - | | CS | any* | TS_CS | | I2S DAC | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | VIN | +5v | - | | DOUT(DIN) | 27* | I2S_DOUT | | BCLK | 26* | I2S_BCLK | | LRC(WSEL) | 25* | I2S_LRC | | VS1053 | ESP-32 | options.h | | ------ | ------ | ------ | | XDCS | 25* | VS1053_DCS | | XCS | 27* | VS1053_CS | | XRST | EN* | VS1053_RST | | DERQ | 26* | VS1053_DREQ | | SCK | 18 | - | | MOSI | 23 | - | | MISO | 19 | - | | 5V | +5V | - | | DGND | GND | - | _\#\# Important! You must choose between I2S DAC and VS1053 by disabling the second module in the settings (see below)_ | Buttons, Encoder, LED, IR, Joystick | ESP-32 | options.h | | ------ | ------ | ------ | | GND | GND | - | | PIN | any* | ENC_BTNx, BTN_xxx, LED_BUILTIN, IR_PIN | _\* Any free pin, configured in myoptions.h_ \ _\** GPIOs 34-39 don't have software pullup/down functions. For encoder/buttons use an external pullup resistor, 10 kOhm works here._ \ _\** GPIO 16 and 17 are used by PSRAM on the WROVER modules._ --- ## Dependencies #### Libraries: **Library Manager**: Adafruit_GFX, Adafruit_ST7735\*, Adafruit_SSD1306\*, Adafruit_PCD8544\*, Adafruit_SH110X\*, Adafruit_SSD1327\*, Adafruit_ILI9341\*, Adafruit_SSD1305\*, (\* depending on display model), ESP32Encoder, OneButton, IRremoteESP8266, XPT2046_Touchscreen \ **Github**: [ESPAsyncWebServer](https://github.com/me-no-dev/ESPAsyncWebServer), [AsyncTCP](https://github.com/me-no-dev/AsyncTCP), [async-mqtt-client](https://github.com/marvinroger/async-mqtt-client)* \ \* _if you need MQTT support_ #### Tool: [ESP32 Filesystem Uploader](https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/) --- ## Hardware setup Hardware is connected in the **[options.h](yoRadio/options.h)** file. \ _so that the settings are not overwritten when updating git, you need to put the file **myoptions.h** ([exsample](exsamples/myoptions.h)) in the root of the project and make settings in it_ \ **Important!** You must choose between I2S DAC and VS1053 by disabling the second module in the settings: ````c++ // If I2S DAC used: #define I2S_DOUT 27 #define VS1053_CS 255 // If VS1053 used: #define I2S_DOUT 255 #define VS1053_CS 27 ```` Define display model: ````c++ /* DISPLAY MODEL * 0 - DUMMY * 1 - ST7735 * 2 - SSD1306 * 3 - NOKIA5110 */ #define DSP_MODEL 1 ```` The ST7735 display submodel: ````c++ #define DTYPE INITR_BLACKTAB // 1.8' https://aliexpress.ru/item/1005002822797745.html //#define DTYPE INITR_144GREENTAB // 1.44' https://aliexpress.ru/item/1005002822797745.html ```` Rotation of the display: ````c++ #define TFT_ROTATE 3 // 270 degrees ```` ##### Note: If INITR_BLACKTAB dsp have a noisy line on one side of the screen, then in Adafruit_ST7735.cpp: ````c++ // Black tab, change MADCTL color filter if ((options == INITR_BLACKTAB) || (options == INITR_MINI160x80)) { uint8_t data = 0xC0; sendCommand(ST77XX_MADCTL, &data, 1); _colstart = 2; // ← add this line _rowstart = 1; // ← add this line } ```` --- ## Quick start 1. In ArduinoIDE - upload sketch data via Tools→ESP32 Sketch Data Upload ([it's here](images/board2.jpg)) 2. Upload the sketch to the board ([example of the board settings](images/board.jpg)) 3. Connect to yoRadioAP acces point with password 12345987, go to http://192.168.4.1/ configure and wifi connections. \ _\*this step can be skipped if you add WiFiSSID WiFiPassword pairs to the [yoRadio/data/data/wifi.csv](yoRadio/data/data/wifi.csv) file (tab-separated values, one line per access point) before uploading the sketch data in step 1_ 4. After successful connection go to http://\/ , add stations to playlist (or import WebStations.txt from KaRadio) 5. Well done! **Localization:** Если Adafruit_GFX ещё не русифицирована, русифицировать её, заменив файл Arduino/libraries/Adafruit_GFX_Library/glcdfont.c файлом [yoRadio/fonts/glcdfont.c](yoRadio/fonts/glcdfont.c) --- ## Update 1. Backup your settings: \ download _http://\/data/playlist.csv_ and _http://\/data/wifi.csv_ and place them in the yoRadio/data/data/ folder 2. In ArduinoIDE - upload sketch data via Tools→ESP32 Sketch Data Upload 3. Upload the sketch to the board 4. Go to page _http://\/_ in the browser and press Ctrl+F5 to update the scripts. 5. Well done! --- ## MQTT 1. Copy file exsamples/mqttoptions.h to yoRadio/ directory 2. In the mqttoptions.h file, change the options to the ones you need 3. Well done! --- ## Home Assistant

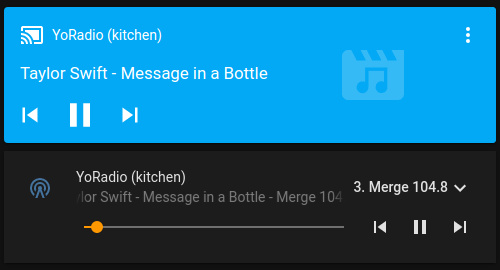

0. Requires [MQTT integration](https://www.home-assistant.io/integrations/mqtt/) 1. Copy directory HA/custom_components/yoradio to .homeassistant/custom_components/ 2. Add yoRadio entity into .homeassistant/configuration.yaml ([see exsample](HA/exsample_configuration.yaml)) 3. Restart Home Assistant 4. Add Lovelace Media Player card to UI (or [mini-media-player](https://github.com/kalkih/mini-media-player) card) 5. Well done! --- ## More features - Сan add up to 65535 stations to a playlist. Supports and imports [KaRadio](https://github.com/karawin/Ka-Radio32) playlists (WebStations.txt) - Telnet with KaRadio format output \ **Commands**: \ **cli.prev** (_or simply_ **prev**) - previous station \ **cli.next** _or_ **next** - next station \ **cli.toggle** _or_ **toggle** - start/stop \ **cli.stop** _or_ **stop** - stop \ **cli.start** _or_ **start** _or_ **cli.play** _or_ **play** - start playing \ **cli.play("x")** _or_ **play(x)** _or_ **play x** - play station x \ **cli.vol** _or_ **vol** - display the current value of volume (0-254) \ **cli.vol("x")** _or_ **vol(x)** _or_ **vol x** - set volume (0-254) \ **cli.audioinfo** _or_ **audioinfo** - display the current value of debug (0-1) \ **cli.audioinfo("x")** _or_ **audioinfo(x)** _or_ **audioinfo x** - debug on/off (0-1) \ **cli.smartstart** _or_ **smartstart** - display the current value of smart start \ **cli.smartstart("x")** _or_ **smartstart(x)** _or_ **smartstart x** - smart start: 2-off, 0-1 - start playing on boot, if the radio was playing before the reboot \ **cli.list** _or_ **list** - display playlist \ **cli.info** _or_ **info** - display current state \ **sys.boot** _or_ **boot** _or_ **reboot** - reboot \ **sys.date** - sync date/time and display it \ **sys.tzo** _or_ **tzo** - display the timezone offset \ **sys.tzo("h:m")** _or_ **tzo(h:m)** _or_ **tzo h:m** - set timezone offset \ **sys.tzo("h")** _or_ **tzo(h)** _or_ **tzo h** - set timezone offset in hours only - MQTT support \ **Topics**: \ **MQTT_ROOT_TOPIC/command** - Commands \ **MQTT_ROOT_TOPIC/status** - Player status \ **MQTT_ROOT_TOPIC/playlist** - Playlist URL \ **MQTT_ROOT_TOPIC/volume** - Current volume \ **Commands**: \ **prev** - prev station \ **next** - next station \ **toggle** - start/stop playing \ **stop** - stop playing \ **start, play** - start playing \ **boot, reboot** - reboot \ **volm** - step vol down \ **volp** - step vol up \ **vol x** - set volume \ **play x** - play station x - Home Assistant support --- ## Plugins At the moment, you can display additional information on the display by writing a few additional functions. There is no documentation yet, you will have to deal with the example, which is in file [exsamples/displayhandlers.ino](exsamples/displayhandlers.ino).\ Work is in progress... --- ## Version history #### v0.6.202 - fixed errors in the operation of the second encoder - rewrote [plugin example](https://github.com/e2002/yoradio/blob/main/exsamples/displayhandlers.ino) - fixed compilation errors on macOS #2 #### v0.6.200 - please backup your playlist and wifi settings before updating (export) - accelerated displays up to ~30fps (everything except LCD) - corrections/additions in the WEB interface (a [full update](#update) is required) - rewrote [plugin example](https://github.com/e2002/yoradio/blob/main/exsamples/displayhandlers.ino) - fixed compilation errors on macOS - changed the logic of the second encoder (switching to the volume control mode by double click) - optimization, bug fixes - probably some other things that I forgot about %) #### v0.6.120 - added support for GC9106 160x80 SPI displays - fixed compiling error with DSP_DUMMY option - fixed compiling error with DSP_1602I2C / DSP_1602 option #### v0.6.110 - the logic of division by cores has been changed - fixed choppy playback (again) - improvements in the stability of the web interface - increased smoothness of the encoder - bug fixes - bug fixes #### v0.6.012 - fixed choppy playback #### v0.6.010 - added displays [SSD1327](https://aliexpress.com/item/1005001414175498.html), [ILI9341](https://aliexpress.com/item/33048191074.html), [SSD1305/SSD1309](https://aliexpress.com/item/32950307344.html), [SH1107](https://aliexpress.com/item/4000551696674.html), [1602](https://aliexpress.com/item/32685016568.html) - added [touchscreen](Controls.md#touchscreen) support - tasks are divided into cores, now the sound is not interrupted when selecting stations / volume - increased speed of some displays - optimization of algorithms, bugs fixes #### v0.5.070 - added something similar to plugins #### v0.5.035 - added two buttons BTN_UP, BTN_DOWN - added the pins for the second encoder ENC2_BTNL, ENC2_BTNB, ENC2_BTNR - fixed display of playlist with SSD1306 configuration - improvements in the displays work - bugs fixes, some improvements #### v0.5.020 - added support for SSD1306 128x32 I2C displays #### v0.5.010 - added support for ST7789 320x240 SPI displays - added support for SH1106 I2C displays - added support for 1602 16x2 I2C displays - a little modified control logic - added buttons long press feature - small changes in options.h, check the correctness of your myoptions.h file - bugs fixes #### v0.4.323 - fixed bug [Equalizer not come visible after go to playlist](https://github.com/e2002/yoradio/issues/1) \ (a [full update](#update) is required) - fixed playlist filling error in home assistant component #### v0.4.322 - fixed garbage in MQTT payload #### v0.4.320 - MQTT support #### v0.4.315 - added support for digital buttons for the IR control \ (num keys - enter number of station, ok - play, hash - cancel) - added buttons for exporting settings from the web interface - added MUTE_PIN to be able to control the audio output - fixed js/html bugs (a [full update](#update) is required) #### v0.4.298 - fixed playlist scrollbar in Chrome (a [full update](#update) is required) #### v0.4.297 - fix _"Could not decode a text frame as UTF-8"_ websocket error _//Thanks for [Verholazila](https://4pda.to/forum/index.php?s=&showtopic=1010378&view=findpost&p=113551446)_ - fix display of non-latin characters in the web interface - fix css in Chrome (a [full update](#update) is required) #### v0.4.293 - IR repeat fix #### v0.4.292 - added support for IR control - new options in options.h (ENC_INTERNALPULLUP, ENC_HALFQUARD, BTN_INTERNALPULLUP, VOL_STEP) _//Thanks for [Buska1968](https://4pda.to/forum/index.php?s=&showtopic=1010378&view=findpost&p=113385448)_ - сompilation error for module SSD1306 with arduino-esp32 version newest than 2.0.0 - fix compiler warnings in options.h - fix some compiler warnings #### v0.4.260 - added control of balance and equalizer for VS1053 - **TFT_ROTATE** and st7735 **DTYPE** moved to myoptions.h #### v0.4.251 - fixed compilation error bug when using VS1053 together with ST7735 #### v0.4.249 - fix VS1003/1053 reseting - fix css in Firefox - fix font in NOKIA5110 display #### v0.4.248 - added support for VS1053 module _in testing mode_ #### v0.4.210 - added timezone config by telnet - fix telnet output - some separation apples and oranges #### v0.4.199 - excluded required installation of all libraries for displays #### v0.4.197 - added support for Nokia 5110 SPI displays - some bugs fixes #### v0.4.183 - ovol reading bug #### v0.4.182 - display connection algorithm changed - added support for myoptions.h file for custom settings #### v0.4.180 - vol steps 0..256 (in ESP32-audioI2S) #### v0.4.177 - added support for SSD1306 I2C displays - fixed broken buttons.
