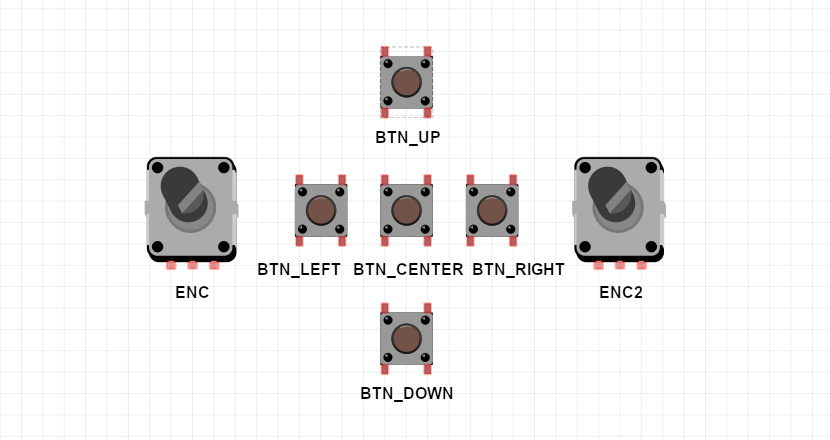

## Controls

<img src="images/controls.jpg" width="830" height="440"><br />

---
- [Buttons](#buttons)
- [Encoders](#encoders)
- [IR receiver](#ir-receiver)
- [Joystick](#joystick)
- [Touchscreen](#touchscreen)
- [Back to README](README.md)

---
### Buttons
Up to 5 buttons can be connected to the device. Three buttons are enough to control it.

Button actions:
- BTN_LEFT\
 click: volume down\
 dblclick: previous station\
 longpress: quick volume down
- BTN_CENTER\
 click: start/stop playing\
 dblclick: switch SD/WEB mode\
 longpress: toggle between PLAYER/PLAYLIST mode
- BTN_RIGHT\
 click: volume up\
 dblclick: next station\
 longpress: quick volume up
- BTN_UP\
 click: without display - next station, with display - move up\
 dblclick: doing nothing\
 longpress: with display - quick move up
- BTN_DOWN\
 click: without display - prev station, with display - move down\
 dblclick: doing nothing\
 longpress: with display - quick move down
- BTN_MODE\
 click: switch SD/WEB mode\
 longpress: go to sleep

---
### Encoders
You can connect one or two encoders to replace/complete the buttons. One encoder (without buttons) is enough to control the device.

- ENCODER1\
 rotate left: (ENC_BTNL) in PLAYER mode - volume down, in PLAYLIST mode - move up\
 rotate right: (ENC_BTNR) in PLAYER mode - volume up, in PLAYLIST mode - move down\
 click, dblclick, longpress: (ENC_BTNB) same as BTN_CENTER
- ENCODER2\
 rotate left: (ENC2_BTNL) if not pressed - switch to PLAYLIST mode and move up, if pressed - volume down\
 rotate right: (ENC2_BTNR) if not pressed - switch to PLAYLIST mode and move down, if pressed - volume up\
 click, dblclick: (ENC2_BTNB) toggle between PLAYER/VOLUME mode

---
### IR receiver
Starting from version 0.6.450, adding an IR remote control has been moved to the web interface. Can be added for up to three remotes.
1. go to Settings >> controls >> IR Recorder (fig.1)
2. press the button you need on the left to record the IR code (fig.2)

<img src="images/irRecorder01.png" width="830" height="490"><br>

3. select the slot on the right and press the button on the physical IR remote (fig.3). Avoid the inscription "UNKNOWN" (fig.4)

<img src="images/irRecorder02.png" width="830" height="490"><br>

4. repeat steps 2 and 3 for other buttons
5. select BACK, select DONE

**Button assignment:**
- &#9199; - start/stop playing
- &#9194; - previous station
- &#9193; - next station
- &#9650; - volume up, longpress - quick volume up
- &#9660; - volume down, longpress - quick volume down
- &nbsp;**\#**  &nbsp;- toggle between PLAYER/PLAYLIST mode
- **0-9** - Start entering the station number. To finish input and start playback, press the play button. To cancel, press hash.

---
### Joystick
You can use a joystick [like this](https://aliexpress.com/item/4000681560472.html) instead of connecting five buttons

<img src="images/joystick.jpg" width="300" height="300"><br />

---
### Touchscreen
- Swipe horizontally: volume control
- Swipe vertically: station selection
- Tap: in PLAYER mode - start/stop playback, in PLAYLIST mode - select
- Long tap: in PLAYLIST mode - cancel

---
