Azure Architecture Autopilot

Design → Diagram → Bicep → Deploy — all from natural language

Azure Architecture Autopilot designs Azure infrastructure from natural language,
generates interactive diagrams, produces modular Bicep templates, and deploys — all through conversation.
It also scans existing resources, visualizes them as architecture diagrams, and refines them on the fly.

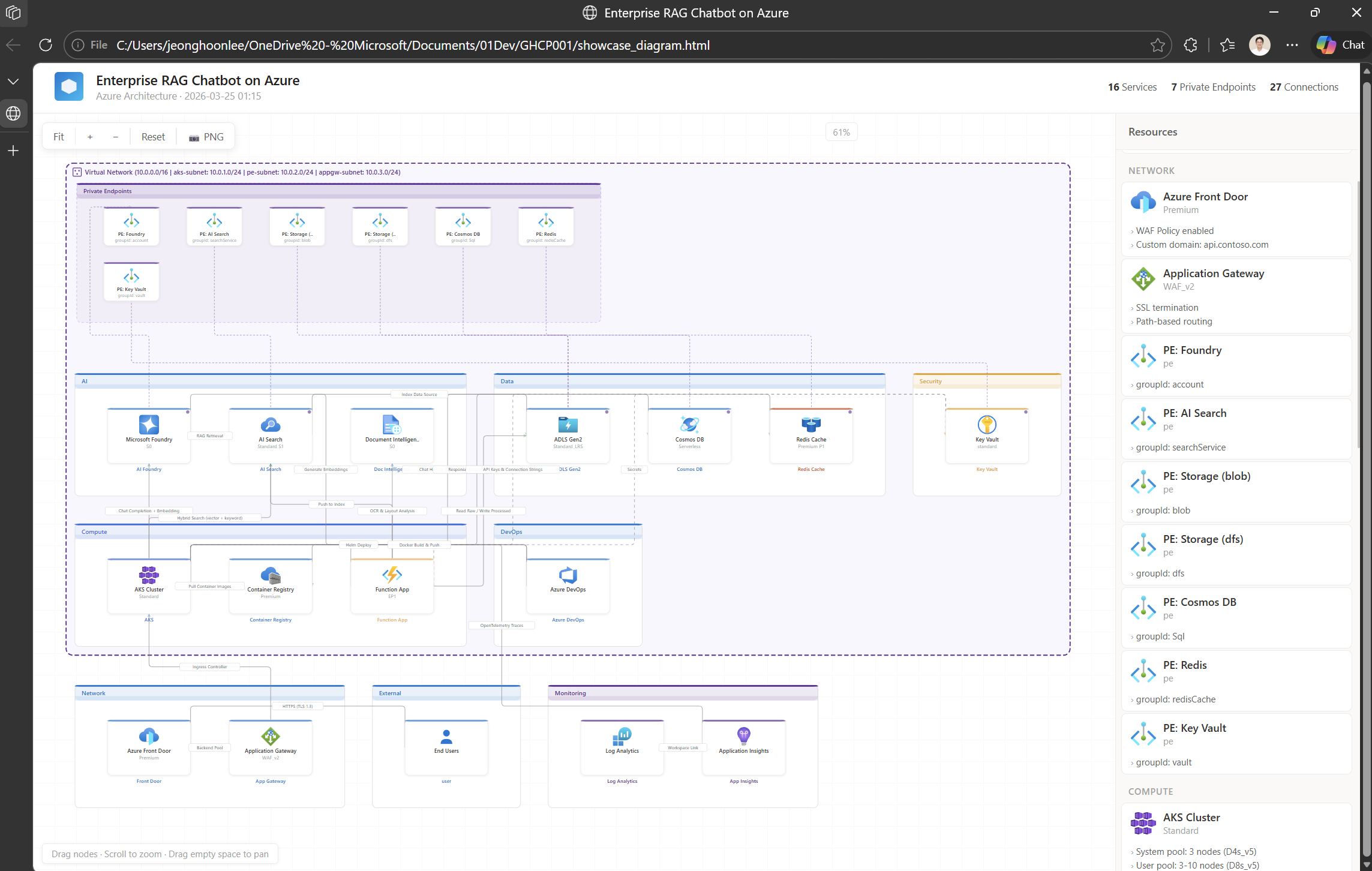

Interactive Azure architecture diagram with 605+ official icons

↑ Auto-generated interactive diagram — drag, zoom, click for details, export to PNG

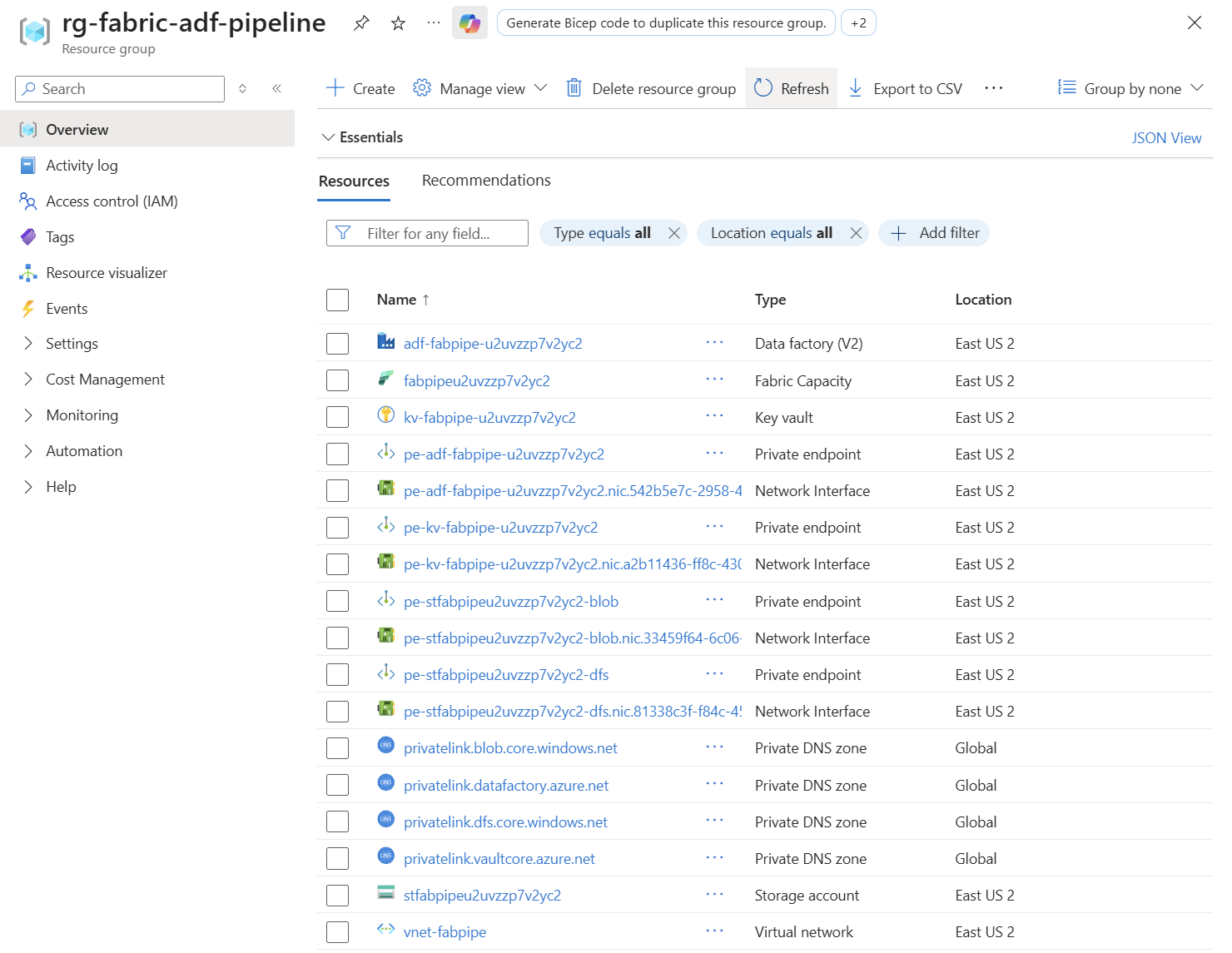

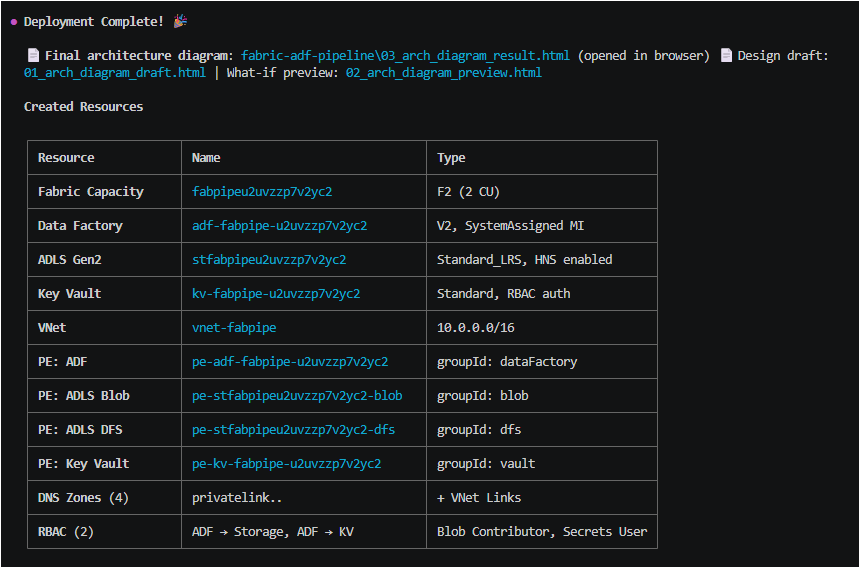

Deployment succeeded Azure Portal — deployed resources

↑ Real Azure resources deployed from the generated Bicep templates

How It Works • Features • Prerequisites • Usage • Architecture

--- ## 🔄 How It Works ``` Path A: "Build me a RAG chatbot on Azure" ↓ 🎨 Design → 🔧 Bicep → ✅ Review → 🚀 Deploy Path B: "Analyze my current Azure resources" ↓ 🔍 Scan → 🎨 Modify → 🔧 Bicep → ✅ Review → 🚀 Deploy ``` | Phase | Role | What Happens | |:-----:|------|--------------| | **0** | 🔍 Scanner | Scans existing Azure resources via `az` CLI → auto-generates architecture diagram | | **1** | 🎨 Advisor | Interactive design through conversation — asks targeted questions with smart defaults | | **2** | 🔧 Generator | Produces modular Bicep: `main.bicep` + `modules/*.bicep` + `.bicepparam` | | **3** | ✅ Reviewer | Compiles with `az bicep build`, checks security & best practices | | **4** | 🚀 Deployer | `validate` → `what-if` → preview diagram → `create` (5-step mandatory sequence) | --- ## ✨ Features | | Feature | Description | |---|---------|-------------| | 📦 | **Zero Dependencies** | 605+ Azure icons bundled — no `pip install`, works offline | | 🎨 | **Interactive Diagrams** | Drag-and-drop HTML with zoom, click details, PNG export | | 🔍 | **Resource Scanning** | Analyze existing Azure infra → auto-generate architecture diagrams | | 💬 | **Natural Language** | *"It's slow"*, *"reduce costs"*, *"add security"* → guided resolution | | 📊 | **Live Verification** | API versions, SKUs, model availability fetched from MS Docs in real-time | | 🔒 | **Secure by Default** | Private Endpoints, RBAC, managed identity — no secrets in files | | ⚡ | **Parallel Preload** | Next-phase info loaded while waiting for user input | | 🌐 | **Multi-Language** | Auto-detects user language — responds in English, Korean, or any language | --- ## ⚙️ Prerequisites | Tool | Required | Install | |------|:--------:|---------| | **GitHub Copilot CLI** | ✅ | [Install guide](https://docs.github.com/copilot/concepts/agents/about-copilot-cli) | | **Azure CLI** | ✅ | `winget install Microsoft.AzureCLI` / `brew install azure-cli` | | **Python 3.10+** | ✅ | `winget install Python.Python.3.12` / `brew install python` | > No additional packages required — the diagram engine is bundled in `scripts/`. ### 🤖 Recommended Models | | Models | Notes | |---|--------|-------| | 🏆 **Best** | Claude Opus 4.5 / 4.6 | Most reliable for all 5 phases | | ✅ **Recommended** | Claude Sonnet 4.5 / 4.6 | Best cost-performance balance | | ⚠️ **Minimum** | Claude Sonnet 4, GPT-5.1+ | May skip steps in complex architectures | --- ## 🚀 Usage ### Path A — Build new infrastructure ``` "Build a RAG chatbot with Foundry and AI Search" "Create a data platform with Databricks and ADLS Gen2" "Deploy Fabric + ADF pipeline with private endpoints" "Set up a microservices architecture with AKS and Cosmos DB" ``` ### Path B — Analyze & modify existing resources ``` "Analyze my current Azure infrastructure" "Scan rg-production and show me the architecture" "What resources are in my subscription?" ``` Then modify through conversation: ``` "Add 3 VMs to this architecture" "The Foundry endpoint is slow — what can I do?" "Reduce costs — downgrade AI Search to Basic" "Add private endpoints to all services" ``` ### 📂 Output Structure ``` / ├── 00_arch_current.html ← Scanned architecture (Path B) ├── 01_arch_diagram_draft.html ← Design diagram ├── 02_arch_diagram_preview.html ← What-if preview ├── 03_arch_diagram_result.html ← Deployment result ├── main.bicep ← Orchestration ├── main.bicepparam ← Parameter values └── modules/ └── *.bicep ← Per-service modules ``` --- ## 📁 Architecture ``` SKILL.md ← Lightweight router (~170 lines) │ ├── scripts/ ← Embedded diagram engine │ ├── generator.py ← Interactive HTML generator │ ├── icons.py ← 605+ Azure icons (Base64 SVG) │ └── cli.py ← CLI entry point │ └── references/ ← Phase instructions + patterns ├── phase0-scanner.md ← 🔍 Resource scanning ├── phase1-advisor.md ← 🎨 Architecture design ├── bicep-generator.md ← 🔧 Bicep generation ├── bicep-reviewer.md ← ✅ Code review ├── phase4-deployer.md ← 🚀 Deployment pipeline ├── service-gotchas.md ← Required properties & PE mappings ├── azure-common-patterns.md ← Security & naming patterns ├── azure-dynamic-sources.md ← MS Docs URL registry ├── architecture-guidance-sources.md └── ai-data.md ← AI/Data service domain pack ``` > **Self-contained** — `SKILL.md` is a lightweight router. All phase logic lives in `references/`. The diagram engine is embedded in `scripts/` with no external dependencies. --- ## 📊 Supported Services (70+ types) All Azure services supported. AI/Data services have optimized templates; others are auto-looked up from MS Docs. **Key types:** `ai_foundry` · `openai` · `ai_search` · `storage` · `adls` · `keyvault` · `fabric` · `databricks` · `aks` · `vm` · `app_service` · `function_app` · `cosmos_db` · `sql_server` · `postgresql` · `mysql` · `synapse` · `adf` · `apim` · `service_bus` · `logic_apps` · `event_grid` · `event_hub` · `container_apps` · `app_insights` · `log_analytics` · `firewall` · `front_door` · `load_balancer` · `expressroute` · `sentinel` · `redis` · `iot_hub` · `digital_twins` · `signalr` · `acr` · `bastion` · `vpn_gateway` · `data_explorer` · `document_intelligence` ... --- ## 📄 License MIT © [Jeonghoon Lee](https://github.com/whoniiii)
